Description

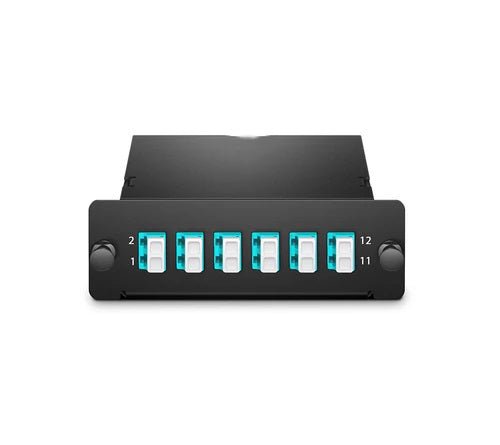

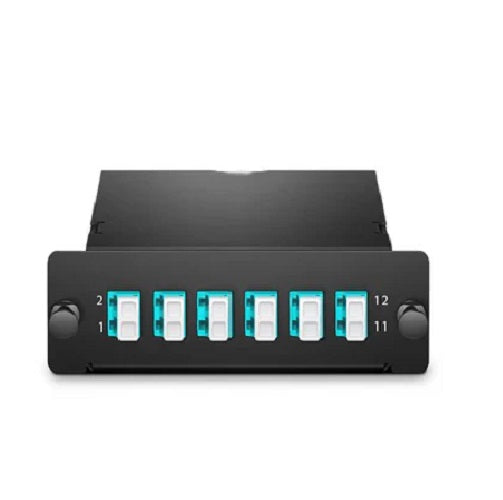

FHD 12 Fibers Elite MTP®-12 to LC Fiber Optic Plug-N-Play Cassette, 12 Strands OM4 50/125μm MMF
FHD series MTP® fiber cassette modules offer 12-fiber MTP® adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high-density fiber cable assemblies for multiple applications.
The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
Product Specification
| Fiber Count | 12 Fibers | Fiber Mode | OM4 50/125μm |
| Front Connector Type | 6 LC UPC Duplex (Aqua) | Rear Connector Type | 1x US Conec MTP® UPC Male (Pinned) |
| MTP® Adapter | Key up to Key down | Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118mm) |
| Insertion Loss | MTP®≤0.35dB, LC≤0.2dB | Return Loss | MTP®≥20dB, LC≥30dB |
| Operating Temperature | -10°C to 60°C | Storage and Shipping Temperature | -10°C to 60°C |
| RoHS Compliancy Status | Compliant | Application | Type A Matching for Type AF Cassette |
Polarity Drawing
Polarity Datasheet
