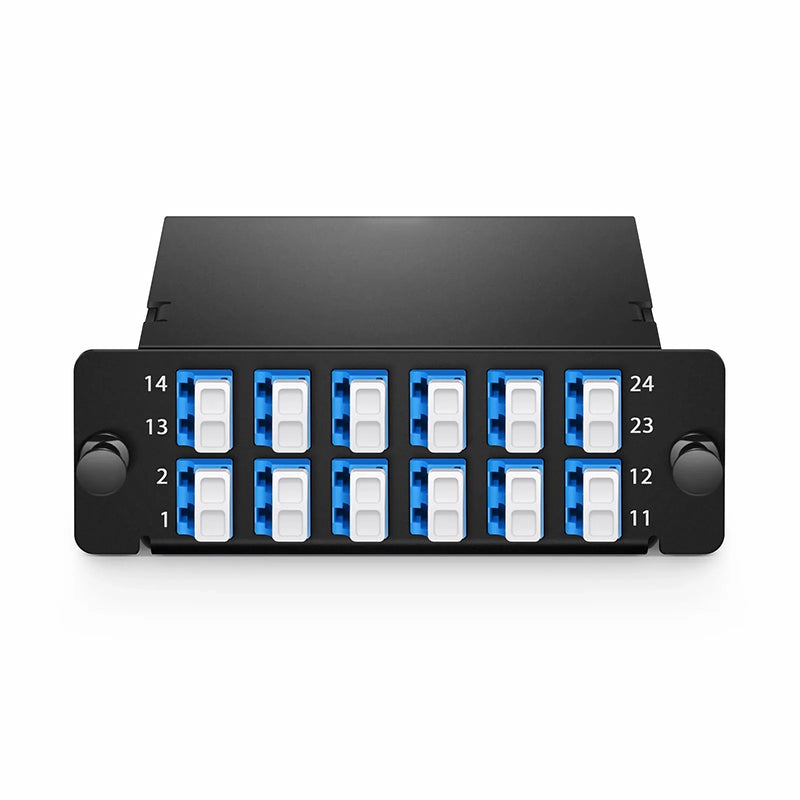

FHD MTP®-24 Cassette, 24 Fibers OS2 Single Mode, MTP® to 12x LC Duplex (Blue), 0.35dB max


Polarity: Type A
Price:
Sale price$170.00

Description

FHD 24 Fibers Elite MTP®-24 to LC Fiber Optic Plug-N-Play Cassette, 24 Strands OS2 9/125μm SMF

FHD series MTP® fiber cassette modules offer 24-fiber MTP® adapter on the rear of the units routed to duplex LC adapters on the front patch field, which interconnect with high-density fiber cable assemblies for multiple applications.
The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, 1U up to 96 LC fibers.
Product Specification

Fiber Count 24 Fibers Fiber Mode OS2 9/125μm

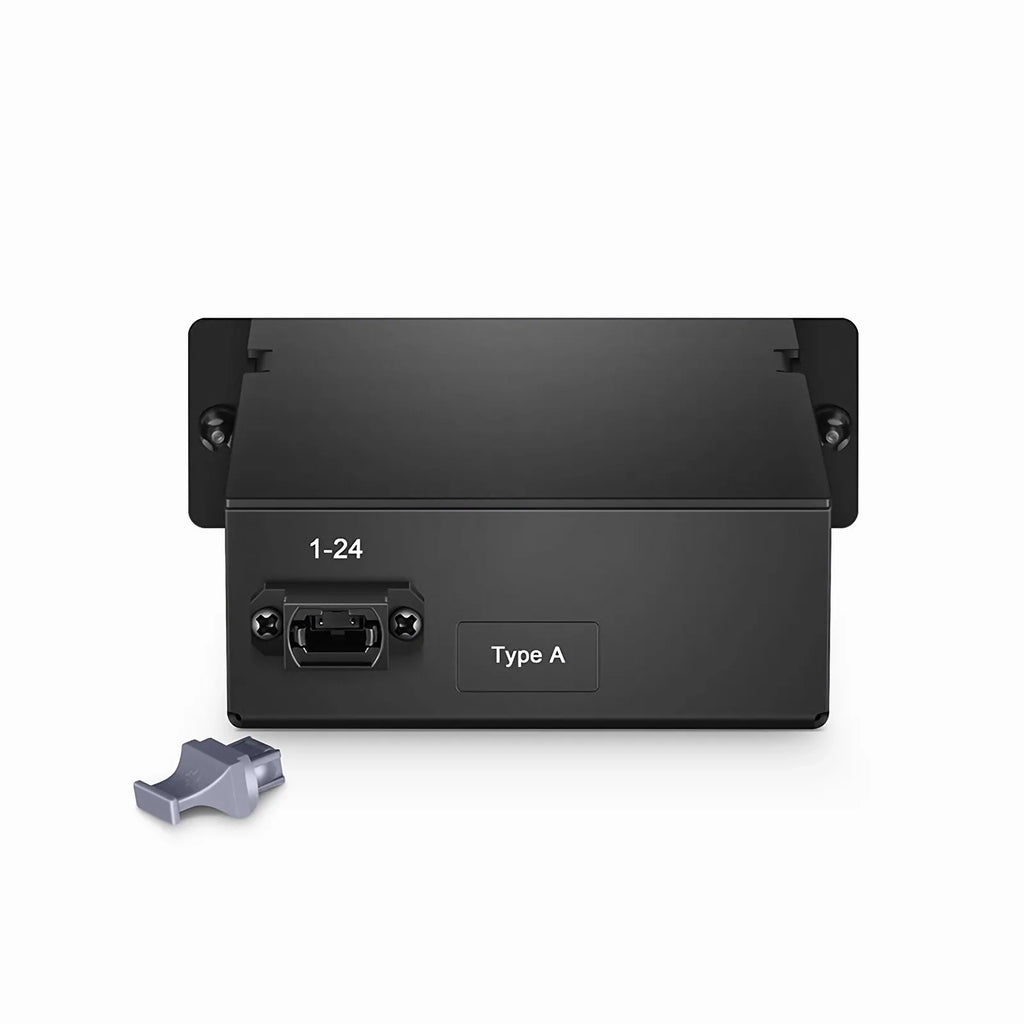

Front Connector Type 12 LC UPC Duplex (Blue) Rear Connector Type 1x US Conec MTP® APC Male (Pinned)
MTP® Adapter Key up to Key down Dimensions (HxWxD) 1.38''x4.29''x4.64'' (35x109x118mm)
Insertion Loss MTP®≤0.35dB, LC≤0.2dB Return Loss MTP®≥60dB, LC≥50dB
Operating Temperature -10°C to 60°C Storage and Shipping Temperature -10°C to 60°C

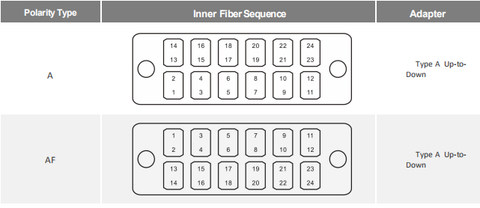

RoHS Compliancy Status Compliant Application  Type A Matching for Type AF Cassette

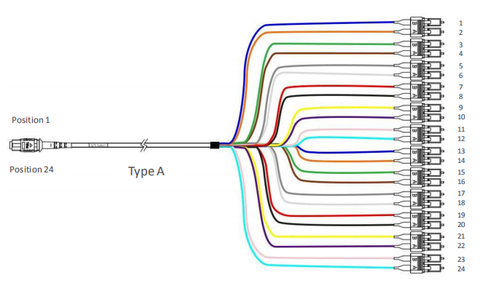

Polarity Drawing


Polarity Datasheet

MTP/MPO Polarity Introduction
