Optical power detection is a kind of optical power monitoring equipment, which can carry on the high precision optical power detection. It supports online sampling or offline.Since its high measurement accuracy, high stability and high performance, OPD is an ideal choice of optical real-time monitoring system in optical fiber, cable, optical passive device loss measurements.
Description

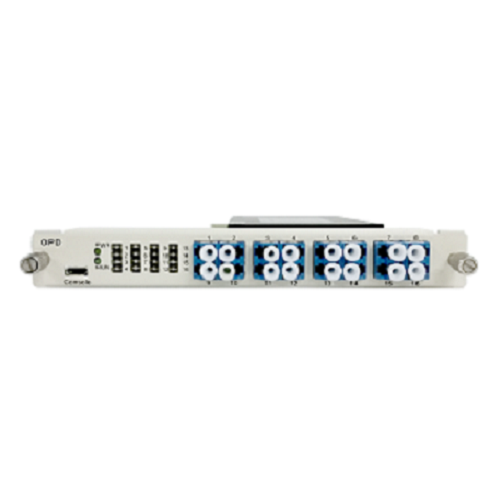

OPD(AIU) Optical Power Detection for Optical Monitoring, LC/UPC, Pluggable Module
Product Highlights
-
Wide Range of Monitoring
-
Support Online and Non-online Collection
-
Support Multi-channel Real-time Monitoring
-
Support 1310±20/1550±20 Optical Signal Monitoring
Operating Wavelength
|
1310/1550nm (±20nm)
|
Power Monitoring Accuracy |
±0.25dB |
Power/Gain Stability
|
±0.1dB |
Power Resolution
|
0.01dB |
Optical Power Monitoring Scope
|
-50~+23dBm
|
Insertion Loss (online)
|
≤1dB
|
Connector
|
LC/UPC
|
Power Consumption
|
<2W
|
Crosstalk
|
>55dB
|
Channel Optional
|
4/8/16 channels
|
Management
|
Monitor Online, Simple Management Tool, Monitor Cable
|
Housing
|
Pluggable Module (Occupies 1 slot in FMT chassis)
|
