Description
MTP Female to LC UPC Duplex OM4 Multimode Breakout Cable
MTP? Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
Product Specification
| Connector A | US Conec MTP Female (Pinless) | Connector B | LC UPC Duplex |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| 40/100G Ethernet Distance | 150m at 850nm | 10G Ethernet Distance | 400m at 850nm |
| Glass Fiber | Corning ClearCurve? | RoHS Compliancy Status | Compliant |
| MTP? Connector IL | 0.35dB Max (0.15dB Typ.) | LC Connector IL | ≥10.2dB |
| MTP? Connector RL | ≤20dB | LC Connector RL | ≥30dB |
| Attenuation at 850nm | ≤12.3dB/km | Attenuation at 1300nm | ≥10.6dB/km |
| Cable Jacket | LSZH | Fiber Count | 12 Fibers |
| Jacket OD | 3.0mm | Fan-Out Diameter | 2.0mm |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Operating Temperature | -10℃to +70℃ | Storage Temperature | -40℃ to +85℃ |

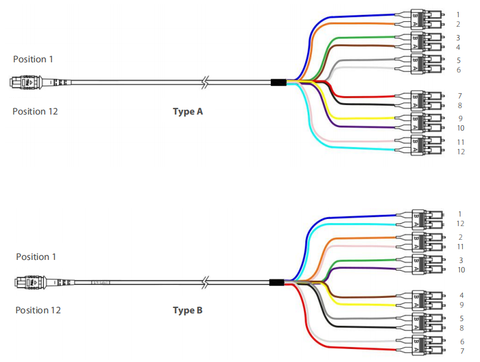

Polarity Datasheet
