Description
MTP Female to MTP Female OM4 Multimode Trunk Cable
MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP Connectors and Corning Clearcurve Fiber, it is optimized for 100GBASE-SR10 CXP/CFP/CPAK optics direct connection and high-density data center applications.
Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
Product Specification
| Connector A | US Conec MTP Female (Pinless) | Connector B | US Conec MTP Female (Pinless) |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| 40/100G Ethernet Distance | 150m at 850nm | 10G Ethernet Distance | 400m at 850nm |
| Glass Fiber | Corning/others | RoHS Compliancy Status | Compliant |
| Polish Type | UPC to UPC | Minimum Bend Radius | 7.5mm |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3 dB/km | Attenuation at 1300nm | ≤0.6 dB/km |
| Jacket OD | 3.0mm | Cable Jacket | OFNP/LSZH |
| Installation Tensile Load | 66N | Tensile Strength | 80/240N |
| Operating Temperature | -10℃ to +70℃ | Storage Temperature | -40℃ to +85℃ |

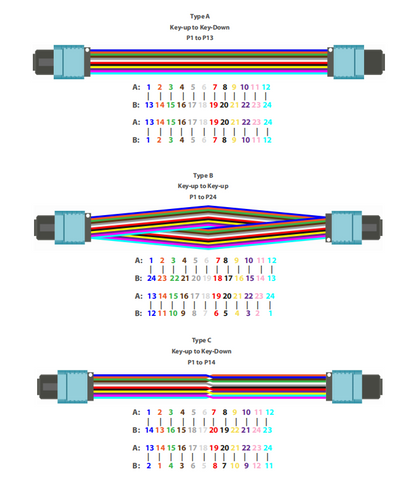

Polarity Datasheet
