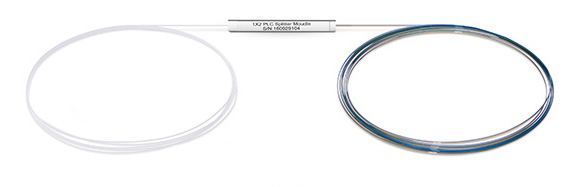

1xN, 2xN Bare Fiber PLC Splitter, Singlemode, 250|¨¬m Fiber, No Connector
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
Note: 1XN means input is 1, output is N, 2XN means input is 2, output is N.
Product Specification
| Package Style | Steel Tube, Bare Fiber | Configuration Type | 1xN, 2xN |
| Fiber Grade | Singlemode G.657A1 | Connector Type | None |
| Fiber Type | Ribbon Fiber | Temperature | Operating-20 to 70??C (-4 to 158??F) Storage -40 to 85??C (-40 to 185??F) |
| Fiber Diameter | 250|¨¬m | Input/Output Fiber Length | 1.5m (default)* |
| Operating Bandwidth | 1260~1650nm | Split Ratio | 50/50 |
