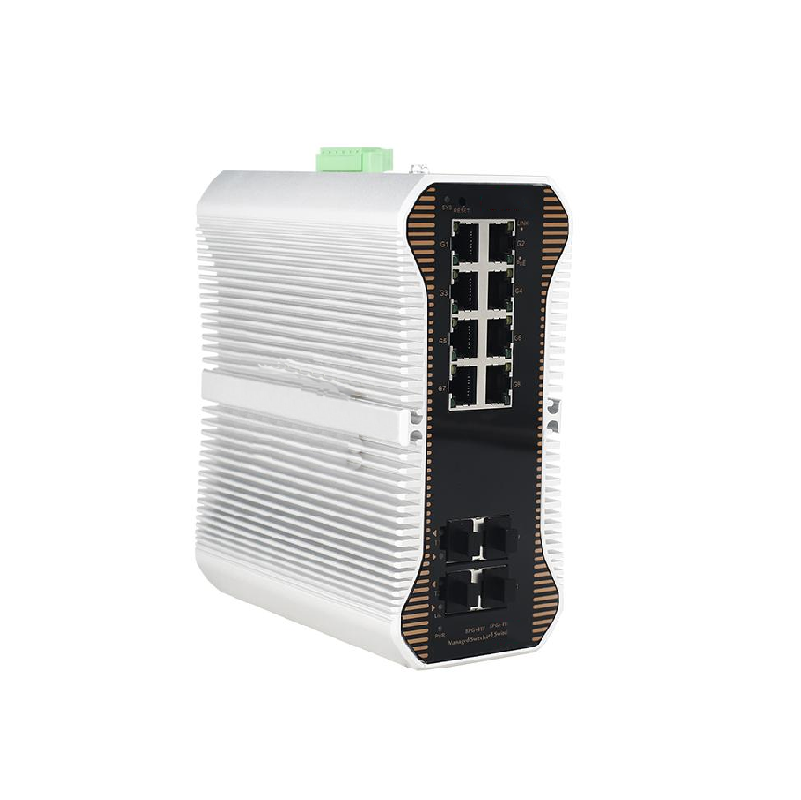

8-Port Gigabit Ethernet L3 Managed Industrial PoE+ Switch, 8 x PoE+ Ports @240W, 4x1/2.5/10Gb SFP+, -40 to 75°C Operating Temperature, FS IES3100-8TF-P Equivalent


Price:
Sale price$339.00

Description

8-Port Gigabit Ethernet L2+ Managed Industrial PoE+ Switch, 8 x PoE+ Ports @240W, with 1/2.5/10Gb SFP+

The OW-3200-8TS-P is a 10G uplink managed industrial PoE switch. It has 8*10/100/1000Base-T adaptive RJ45 ports and 4*1/10G uplink SFP+ fiber ports. Port 1-8 can support the IEEE802.3af/at PoE standard, and the single-port max PoE power is 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP cameras, VoIP phones, and industrial sensors through a network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy, and green energy, industrial scenes such as construction, setting up a cost-effective and stable communication network.

The OW-3200-8TS-P has L3 network management function, supports IPV4/IPV6 management, dynamic routing and forwarding, complete security protection mechanism, complete ACL/QoS policy, rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/ RSTP/ MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure important, uninterrupted application communication. According to the application needs, port management, routing address management, port flow control, VLAN division, IGMP, security policy, and other application services are configured through network management methods such as Web, CLI, SNMP, Telnet, etc.


FEATURE

Gigabit access, uplink 1/10G SFP+ fiber port

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

◇ Support Gigabit RJ45 port and 1/10G uplink SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.


Smart PoE power supply

◇ PoE network management, realize PoE port power allocation, port power status viewing, time scheduling, etc.

◇ Comply with IEEE802.3af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

◇ The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading of the device.

◇ 8*10/100/1000Base-T RJ45 ports support PoE power, meeting the PoE power requirements of security monitoring, industrial automation systems, wireless coverage and other scenarios.


Strong business processing capability

◇ Support ERPS ring network and STP/ RSTP/ MSTP to eliminate layer 2 loops and realize link backup.

◇ Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.

◇ Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.

◇ Support QoS, port-based, 802.1P-based, and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.

◇ Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.

◇ Support IGMP V1/V2/V3 multicast protocol, IGMP Snooping meets multi-terminal high-definition video surveillance and video conference access requirements.


Security

◇ Support port+MAC binding, IP+MAC+port binding functions.

◇ Support port isolation and port broadcast storm suppression.

◇ 802.1X authentication provides authentication functions for LAN computers and controls the authorization status of controlled ports according to the authentication results.


Stable and reliable

◇ CCC, CE, FCC, RoHS.

◇ The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, L/A, and PoE.

◇ Low power consumption, aluminum alloy housing, and excellent heat dissipation to ensure the stable operation of the switch.


Easy O&M management

◇ Support CPU monitoring, memory monitoring, Ping detection, and cable length detection.

◇ HTTPS, SSLV3, SSHV1/V2, and other encryption methods are more secure in management.

◇ RMON, system log, and port traffic statistics are convenient for network optimization and transformation.

◇ LLDP is convenient for the network management system to query and judge the communication status of the link.

◇ Support diverse management and maintenance methods such as Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3), Telnet, etc.


DIMENSION


12 port managed industrial PoE switch,industrial PoE switch, PoE switch

 Packing List

Content Qty Unit
12-port gigabit managed industrial Ethernet switch 1 SET
RJ45-DB9 Adapter Cable 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Note: For Industrial Switch,Power cord is not included within it, please purchase seperately.



TECHNICAL SPECIFICATION


Model

OW-3200-8TS-P

Interface Characteristics

Fixed Port

1*Console port (115200, N, 8,1)

Power failure alarm switch port (FAULT)

4*1/10G uplink SFP+ fiber ports (Data)

8*10/100/1000Base-T PoE ports (Data/ Power)

2*DC48-57V input ports (support reverse connection protection)

Ethernet Port

Port 1-8 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meters)

100BASE-TX: Cat5 or later UTP (≤100 meters)

1000BASE-T: Cat5e/6 or later UTP (≤100 meters)

Optical Fiber Port

Default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)

Optical Fiber Port Expansion

Turbo overclocking 2.5G optical module expansion and ring network

Optical Cable/ Distance

Multi-mode: 850nm/ 0-550m(1G), 850nm/ 0-300m (10G), Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km

Chip Parameter

Network Management Type

L3

Network Protocol

IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3ae 10GBase-SR/LR, IEEE 802.3x

Forwarding Mode

Store and forward (Full sire speed)

Switching Capacity

128Gbps (non-blocking)

Forwarding Rate@64byte

71.42Mpps

CPU(Hz)

800M

DRAM

1G

FLASH

128M

MAC

16K

Buffer Memory

12M

Jumbo Frame

12K

LED Indicator

System: SYS (Green), Network: Link (Yellow), PoE: PoE (Green), Fiber port: L/A (Green)

Reset Switch

Yes, press and hold the switch for 10 seconds and release it to restore the factory settings

PoE& Power Supply

PoE Port

Port 1-8

PoE Management

Port PoE real-time load power display, Port PoE output on/off, PoE work and time scheduling

Power Supply Pin

1/2(+) 3/6 (-)

Max Power Per Port

30W, IEEE802.3af/at

Power Consumption

Standby<13W, full load af<120W, at<240W

Input Voltage/ Interface

DC48-57V, 6P industrial Phoenix terminal, support anti-reverse protection.

Power Supply

No, optional 48V/120W or 48V/240W industrial power supply

Physical Parameter

Operation Temp/ Humidity

-40~75°C5%~90% RH non condensing

Storage Temp/ Humidity

-40~80°C5%~95% RH non condensing

Dimension (L*W*H)

166*150*75mm

Net /Gross Weight

1.8kg/ 2.1kg

Installation

Desktop, 35mm DIN Rail

Certification& Warranty

Lightning Protection

IEC61000-4-3 (RS):10V/m (80-1000MHz)

FCC Part 15/CISPR22 (EN55022): Class A

IEC61000-6-2 (Common Industrial Standard)

IEC61000-4-9 (Pulsed magnet field): 1000A/m

IEC61000-4-10 (Damped oscillation): 30A/m 1MHz

IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV

Protection level: IP40, Lightning protection: 6KV 8/20us

IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV

IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s

IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)

IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s

IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV

Mechanical Properties

IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)

Certification

CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS

Warranty

5 years, lifelong maintenance.

Network Management Feature

Interface

Port real-time flow management (Flow Interval)

Broadcast storm suppression based on port rate

SFP optical module DDMI real-time digital diagnosis

Port EEE Green Ethernet Energy-Saving configuration and status view

IEEE802.3x flow control (Full duplex), Port exception protection mechanism

Limit the rate of packet traffic on incoming and outgoing ports, the mini granularity is 16Kbps and max 1Gbps

L3 Feature

Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6

VLANIF interfaces for IPV4/IPV6, up to 64 entries

IPV4/IPV6 static routing/default routing, up to 64 entries

NG protocol max 1000 entries, ARP protocol max 1000 entries

IPV4 equal cost routing, VRRP for IPV4/IPV6, up to 255 entries

IPV4 dynamic routing, RIPv1/v2, OSPFv2, routing 2000 entries

L3 network management function, IPV4/ IPV6 dual-stack management

L3 routing and forwarding, support communication between different network segments and different VLAN

VLAN

Port configuration of Access, Trunk, Hybrid, IEEE 802.1q

Voice VLAN, GVRP VLAN protocol, Port-based VLAN (4K)

Protocol-based VLAN, MAC address-based VLAN, QinQ configuration

Port Aggregation

LACP dynamic aggregation, Static aggregation, Max 6 aggregation groups and max 8 ports per group.

Spanning Tree

STP BPDU Guard, BPDU filtering and BPDU forwarding

STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)

ERPS Ring Network

ERPS ring network, Recovery time less than 20ms, ITU-T G.8032

Multicast

Multicast VLAN, User quick log out, MLD Snooping, MVR (Multicast VLAN Registration), IGMP Snooping v1/v2/v3 and 1024 multicast groups at most

Mirroring

Bidirectional traffic mirroring for basic ports

one-to-multiple mirroring, supports up to 4 port sessions

QoS

Flow-based Rate Limiting, Flow-based redirection

Queue Scheduling Algorithm (SP, WRR, SP+WRR)

Flow-based Packet Filtering, 8*Output queues of each port

802.1p/DSCP priority mapping, Diff-Serv QoS, Priority Mark/Remark

ACL

ACL is issued based on port and VLAN

L2-L4 packet filtering function can match the first 80 bytes of the message and provide ACL definition based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port range, VLAN, etc.

Security

Port based IEEE802.1X authentication

Port isolation, IP Source Guard function

SSL guarantees data transmission security

Quad binding function of IP+MAC+VLAN+ports

MAC address learning limit, MAC address black hole

Anti DoS attack, Port broadcast message suppression

Hierarchical user management and password protection

SSH 2.0 provides a secure encrypted channel for user login

Host data backup mechanism, ARP intrusion detection function

IP source address protection, ARP message speed limit function

Support AAA, RADIUS, TACACS+ authentication (only supports authentication, not authorization and accounting)

DHCP

DHCP Client, DHCP Snooping, DHCP Server

Management

System work log, Link Layer Discovery Protocol

NTP clock, Cable length detection, SNMP V1/V2/V3

Ping detection, Web network management (HTTPS)

HTTP, TFTP file upload and download management

Console/ SSH/ Telnet/ CLI command line configuration

NMS platform cluster management (LLDP+SNMP)

One click recovery, View CPU real-time utilization status

System

Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable

TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
