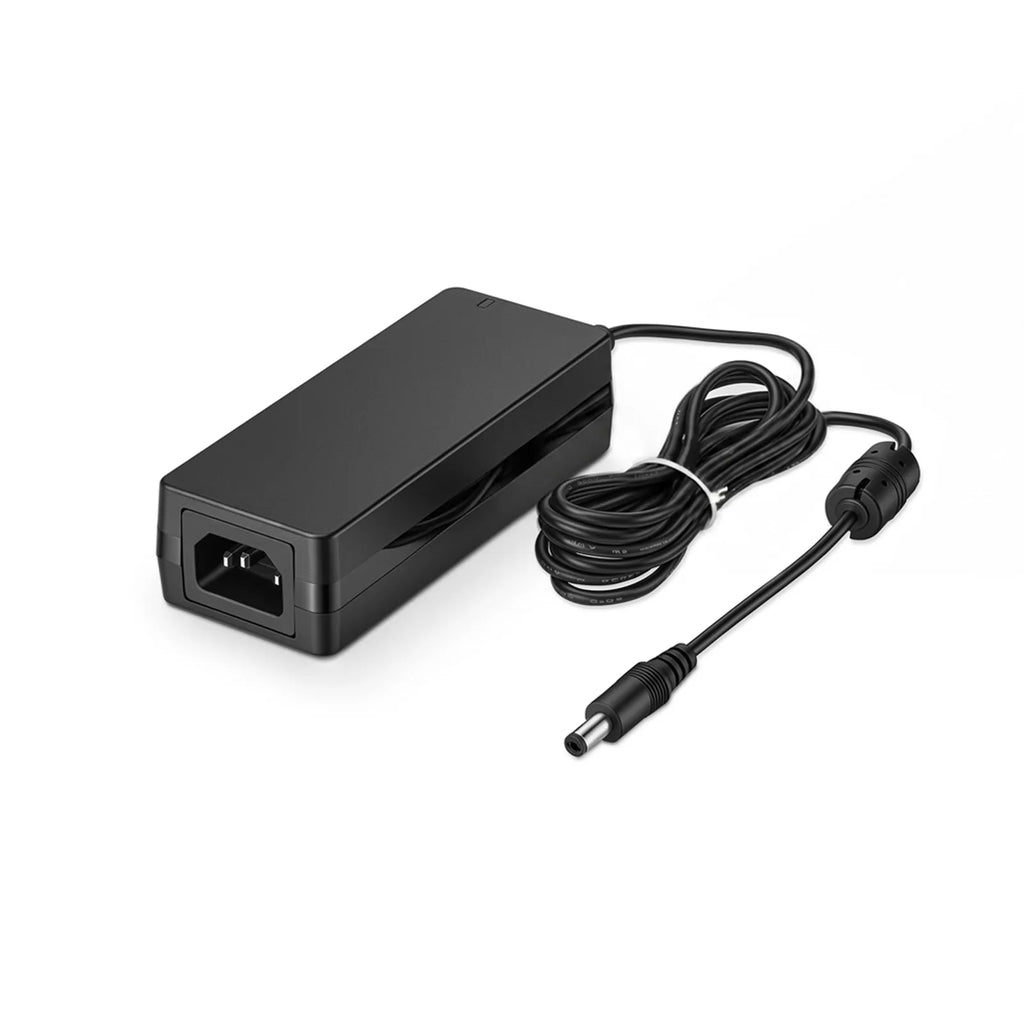

GST40A48-P1J is a reliable 40W single-output power adapter designed for stable power delivery in industrial and commercial applications. This Class I power unit (with FG) features a standard IEC320-C14 AC inlet and accepts a wide input range of 90 to 264 VAC, making it suitable for global deployment.
Delivering up to 91% efficiency and an ultra-low no-load power consumption of below 0.075W, the adapter complies with major regional energy efficiency regulations, helping customers reduce energy costs. Built with a 94V-0 flame-retardant plastic case, certified to international safety standards, and passed Limited Power Source (LPS) testing, the GST40A48-P1J ensures safe and reliable operation even in harsh environments ranging from -30°C to 70°C.
Specifications
| Input Voltage Range | 90 to 264VAC | Input Current | 1A/115VAC 0.5A/230VAC |
| Output DC Voltage | 48V | Output Power | 40W |
| Efficiency | 91% | Enclosure | 94V-0 Flame Retardant Plastic Case |
| Operating Temperature | -30 to 70°C (-22 to 158°F) | Operating Humidity | 20% to 90% (Non-condensing) |
| Dimensions (HxWxD) | 1.24"x1.97"x4.92" (31.5x50x125mm) | MTBF | 3493.6K hrs min. Telcordia SR-332 (Bellcore); 728.2K hrs min. MIL-HDBK-217F (25°C) |
