Description

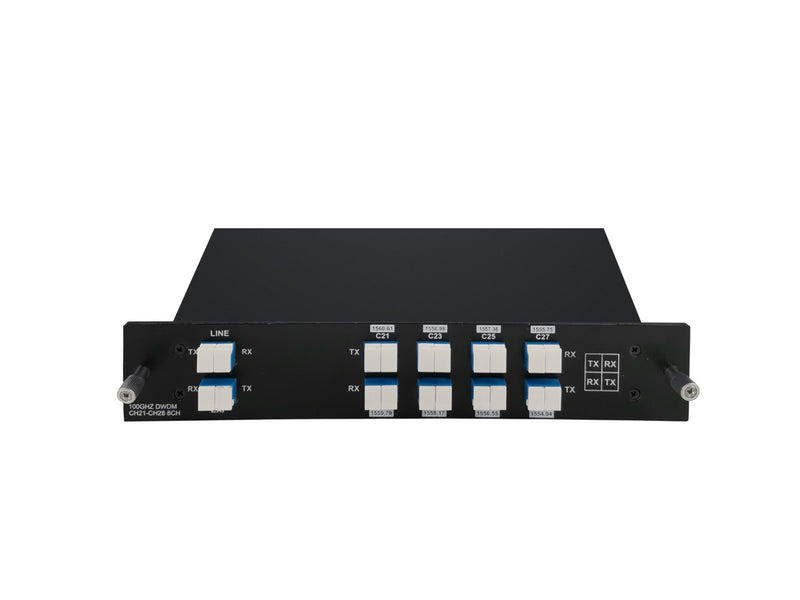

8ch DWDM Mux/Demux Plug-in Module, 100GHz ITU Grid, RX:C21-C35, TX:C22-36, w/Expansion Port
DWDM Mux Demux is usually used for long-haul transmission where wavelengths are packed tightly together over the C-band, up to 48 wavelengths in 100GHz grid(0.8nm) and 96 wavelengths in 50GHz grid(0.4nm). It's protocol transparent and suit applications including 10/1G Ethernet, SDH/SONET, 16/8/4/2/1G Fibre Channel, FTTx and CATV.
Product Specification
Wavelength | 8 channels RX-C21~C35, TX-C22~C36 | Channel Spacing | 100GHz (0.8nm) |
Channel Passband | ¡À0.11nm | Insertion Loss | ¡Ü 4.6dB (with connectors and adapters) |
Passband Ripple | ¡Ü 0.5dB | Insertion Loss @ Exp | ¡Ü 4.6dB (with connectors and adapters) |
Technology | TFF (Thin Film Filter) | Isolation | Adjacent channel ¡Ý 30dB Non-adjacent channel ¡Ý 40dB |
Return Loss | ¡Ý 45dB | Directivity | ¡Ý 45dB |
Polarization Dependent Loss | ¡Ü 0.3dB | Polarization Mode Dispersion | ¡Ü 0.1ps |
Operating Temperature | -40 to 85℃ | Storage Temperature | -40 to 85℃ |
Net Weight | 1.2kg (2.6lb) | Dimensions (HxWxD) | 1.73"x8.35"x10.04" (44x212x255mm) |
