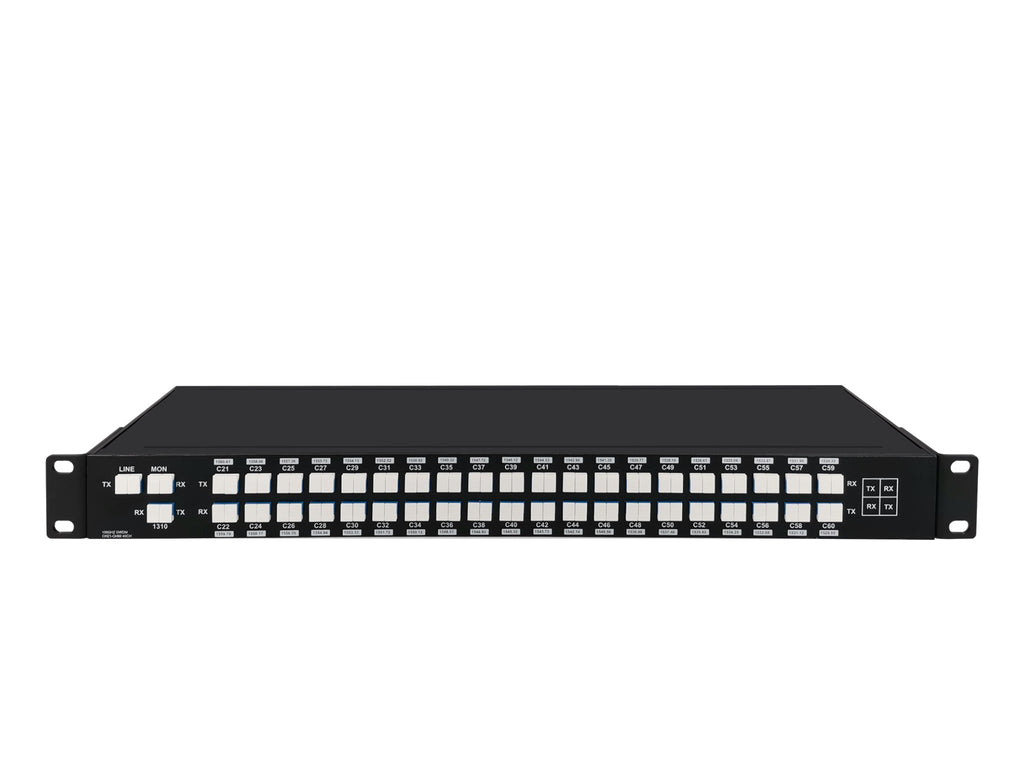

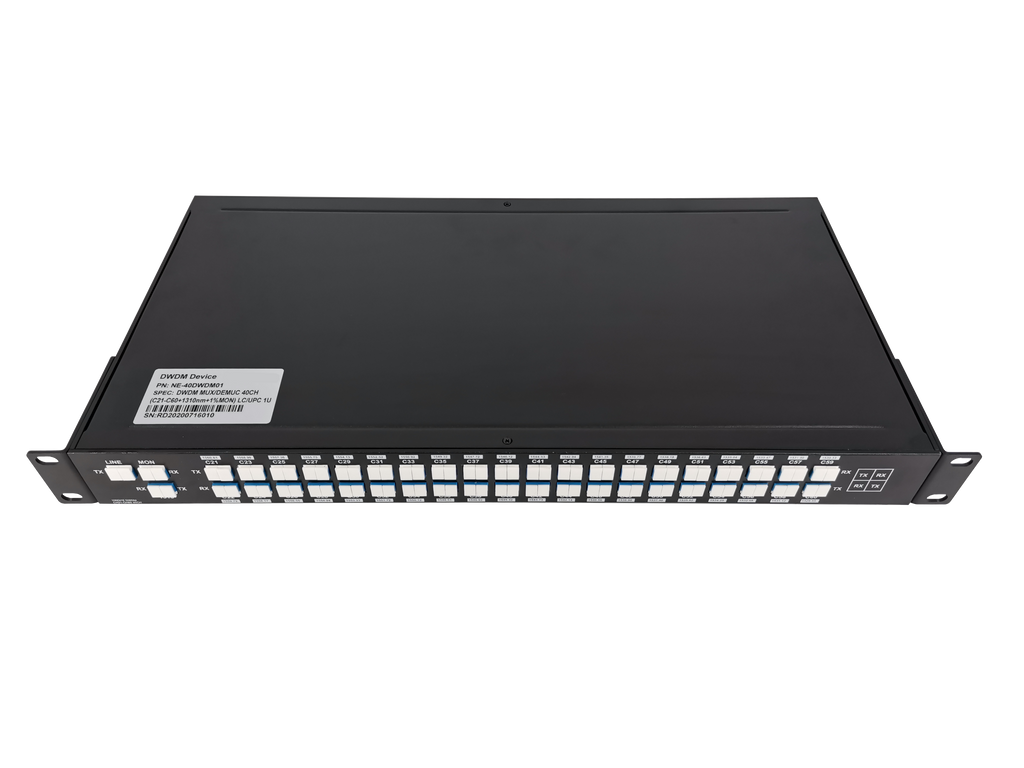

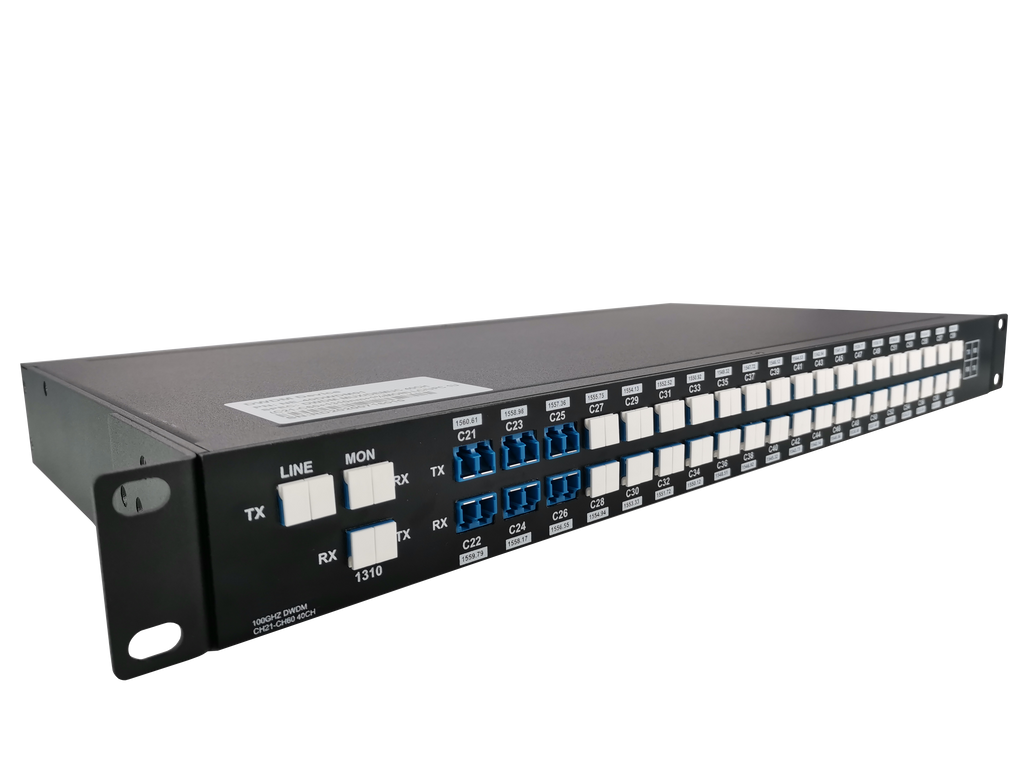

AAWG 40CH 100GHz C21-C60 Dual Fiber, with 1310nm and Mon, 3.0dB Typical IL, LC/UPC, DWDM Mux Demux, 1U Rack Mount, FMU-D402160M


Price:
Sale price$799.00

Description

40ch C21-C60 Dual Fiber DWDM Mux Demux, AAWG, with 1310nm and Monitor Port

The 40ch Mux Demux is a high density, low loss and standalone passive optical module. It is based on a-thermal AWG technology with Gaussian shaped pass bands. By providing access up to forty 100GHz spaced channels in a 1U package, this unit maximizes the capacity of the C-band range. In conjunction with the transponders and amplifiers, the 40ch mux demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.
Product Specification

Wavelength 40 channels C21-C60 Channel Spacing 100GHz (0.8nm)
Channel Passband ±0.11nm Technology AAWG (Gaussian)
Insertion Loss <3.0dB
(with connectors and adapters)
Link Loss < 10.0dB (with connectors and adapters)
1310nm Port Pass Band Width 1260nm~1360nm Center Wavelength Accuracy ±0.05nm
Insertion Loss @ 1310 port 1.5dB (with connectors and adapters) Insertion Loss @ 1% Mon 26dB (with connectors and adapters)
Return Loss 40dB Directivity 40dB
Polarization Mode Dispersion 0.1ps Polarization Dependent Loss 0.3dB
Channel Isolation Adjacent 25dB
Non-adjacent 29dB
Temperature Operating -5 to 65°C (23 to 149°F)
Storage -40 to 85°C (-40 to 185°F)
Net Weight 4.5kg (10lb) Dimensions (HxWxD) 1.73"x19"x10.28" (44x481.8x261.2mm)

* Note: Link Loss is the paired insertion loss of this 40CH DWDM Mux Demux.
