Description

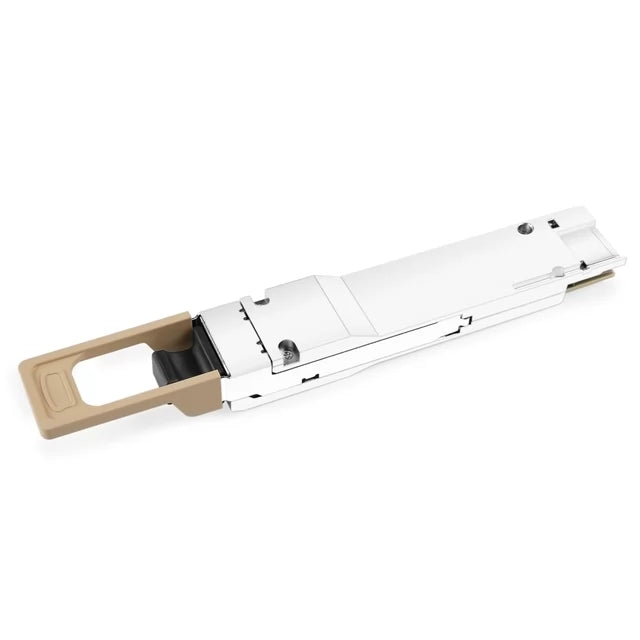

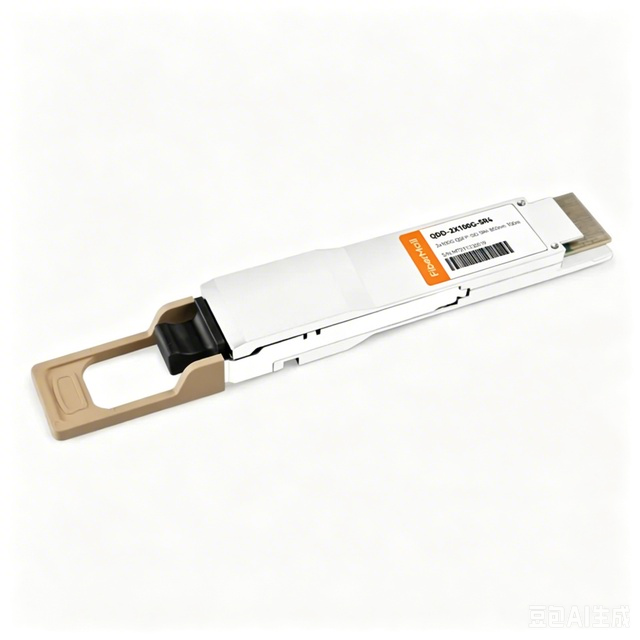

Cisco QDD-2X100-SR4-S Compatible 2X100G QSFP-DD SR4 Optical Transceiver Module (850nm MPO-24 MMF 70m/100m OM3/OM4 DDM)
2X100G QSFP-DD SR4 transceiver provides 2X100GBase-SR4 throughput up to 100m over multi-mode fiber (MMF) using a wavelength of 850nm via an MPO-24 connector. It supports Digital optical monitoring (DOM). Its easy-to-install, hot-swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically.
QSFP56-SR4-200G Specifications
| NVIDIA InfiniBand Compatible |
QDD-2X100-SR4-S
|
Vendor Name | opticswaves |
| Form Factor | QSFP-DD | Max Data Rate | 200Gbps |
| Wavelength | 850nm |
Max Cable Distance
|
70m on OM3/100m on OM4 |
| Connector | MTP/MPO-24 | Media | MMF |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| TX Power | -6.5~4dBm | Receiver Sensitivity | < -10.3dBm |
| Power Consumption | <5W | Extinction Ratio | >3dB |
| Modulation Format | PAM4 | Protocols | QSFP56 MSA, SFF-8636, IEEE 802.3bs |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Application | Infiniband HDR |
NVIDIA InfiniBand MMS1W50-HM Compatible QSFP56 200G FR4 InfiniBand HPC Optical Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, LC, DOM)
The NVIDIA InfiniBand MMS1W50-HM Compatible QSFP56 Optical Transceiver is designed for use in 200Gb/s HDR InfiniBand systems throughput up to 2km single mode fiber (SMF) using a wavelength of 1310nm via a duplex LC connector. This transceiver is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, and SFF-8679 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as InfiniBand, data centers, high-performance computing networks, enterprise core and distribution layer applications.
QSFP56-FR4-200G Specifications
| NVIDIA InfiniBand Compatible |
MMS1W50-HM
|
Vendor Name | opticswaves |
| Form Factor | QSFP56 | Max Data Rate | 200Gbps (4x50Gbps) |
| Wavelength | 1271nm, 1291nm, 1311nm and 1331nm |
Max Cable Distance
|
2km
|
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power |
-4.2~4.7dBm
|
Receiver Sensiti |
< -8.2dBm
|
| Power Consumption |
≤6.5W
|
Receiver overload | 4.7dBm |
| Powerbudget |
4dB
|
Extinction Ratio | >3.5dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, SFF-8679 | Warranty | 5 Years |
