Description

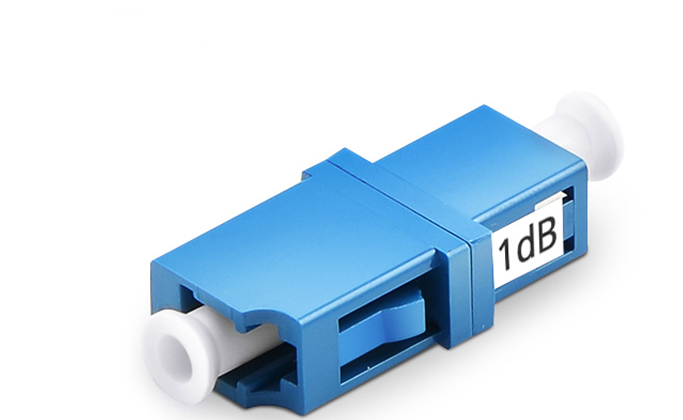

Customized Female to Female Singlemode Fiber Attenuator, Fixed Type
As optical passive devices, our attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
Please note: E2000 is an LSH connector with a dust-proof cover.
| Fiber Connector | LC/SC/FC/ST/LSH | Ferrule Type | Zirconia Ceramic |
| Connector Gender | Fixed Female to Female | Transfer Mode | Singlemode |
| Attenuation | 1~20dB | Operating Wavelength(nm) | 1260~1620(SM) |
|
Attenuation Accuracy
|
±0.5dB | Return Loss | ≥45dB |
| Polarization Dependent Loss | ≤0.2dB | Max Optical Input Power | 200mW |
| Humidity | 95%RH | Operating Temperature Range | -40 to 80°C) |
| Storage Temperature Range | -40 to 85°C) |
