Description

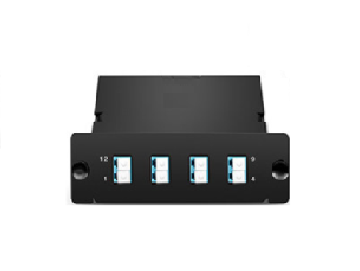

FHD 8 Fibers MTP®-8 to LC Duplex OM4 Mutimode MTP® Cassette
FHD series MTP® fiber cassettes feature one rear 8-fiber MTP® port connection and 4 duplex LC ports in front. This Base-8 MTP® fiber cassette is designed to upgrade existing LC links to SR4 parallel optics without wasting any of the fibers inside the cable.
The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications.
Product Specification
| Fiber Count | 8 Fibers | Fiber Mode | OM4 50/125μm |
| Front Connector Type | 4 LC UPC Duplex (Aqua) | Rear Connector Type | 1x US Conec MTP® UPC Base-8 Male (Pinned) |
| MTP® Adapter | Key up to Key down | Performance Level | Laser Optimized |
| Insertion Loss | MTP®≤0.35dB, LC≤0.2dB | Return Loss | MTP®≥20dB, LC≥30dB |
| RoHS Compliancy Status | Compliant | Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118mm) |
| Operating Temperature | -10°C to 60°C | Storage and Shipping Temperature | -10°C to 60°C |
Polarity Drawing
Polarity Datasheet
