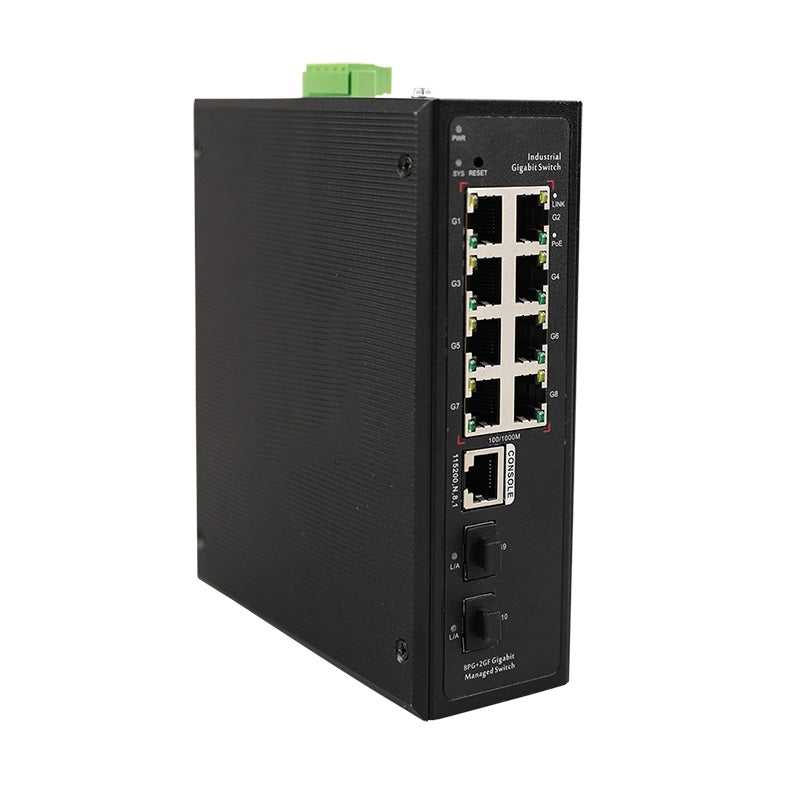

The OW3200-8T2F-BT is a Gigabit managed industrial bt PoE switch. It has 8*10/100/1000Base-T adaptive RJ45 and 2*100/1000Base-X uplink SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at/bt PoE standard and the single-port PoE power output is 90W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It provides stable and safe terminals for PTZ network domes, high-power wireless AP, high-power network multimedia speakers, and high-power PoE lighting through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy, green energy, and industrial scenes such as construction to set up a cost-effective and stable communication network.
The OW3200-8T2F-BT has L2+ network management function, supports IPV4/ IPV6 management, static route forwarding, security protection mechanism, ACL/QoS policy, and VLAN, and is easy to manage and maintain. Support multiple network redundancy protocols STP/RSTP/MSTP(<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure important uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.
FEATURE
Gigabit access
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
- Support Gigabit RJ45 port and SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
- Set on the Web network management interface to control the PoE port power supply based on the user-defined time period.
- Comply with IEEE 802.3 af/at/bt PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
- 8*10/100/1000Base-T RJ45 ports can support bt PoE power supply, meeting the demand for super high power PoE power supply in various scenarios.
Strong business processing ability
- Support ERPS ring network and STP/ RSTP/ MSTP to eliminate layer 2 loops and realize link backup.
- Support IEEE 802.1Q VLAN, users can flexibly divide VLAN according to needs, support Voice VLAN and QinQ configuration.
- Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
- Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
- Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
-
Support IGMP V1/V2/V3 multicast protocol and IGMP Snooping to meet multi-terminal high-definition video surveillance and video conference access requirements.
Security
- Port isolation and storm control.
- IP+MAC+port+VLAN quadruple flexible combination binding function.
-
802.1X authentication provides authentication functions for LAN computers, and controls the authorization status of controlled ports according to the authentication results.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, and PoE.
-
Low power consumption, aluminum alloy housing, and excellent heat dissipation to ensure stable operation of the switch.
Easy O&M management
- Support CPU monitoring, memory monitoring, Ping detection, and cable length detection.
- Support RMON, system log, and port traffic statistics to facilitate network optimization and transformation.
- Support HTTPS, SSLV3, SSHV1/V2, and other encryption methods, making management more secure.
- Support LLDP to facilitate the network management system to query and judge the communication status of the link.
-
Support Web network management, CLI (Console, Telnet), SNMP (V1/V2/V3), Telnet and other diversified management and maintenance methods.
