Description

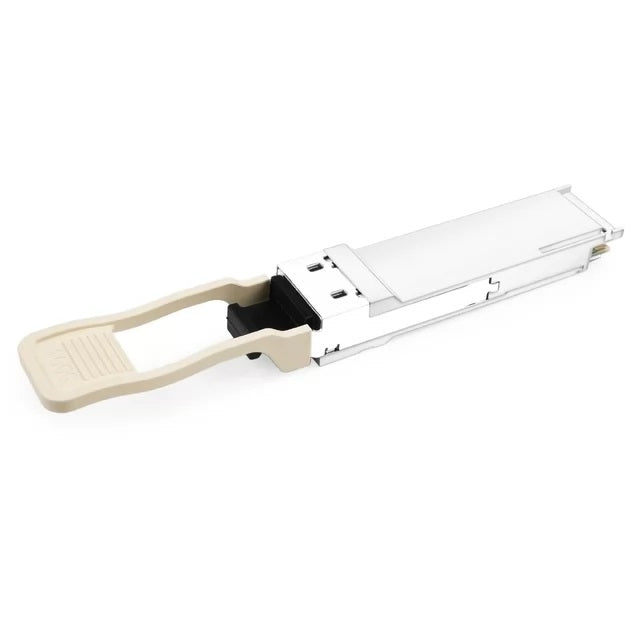

NVIDIA InfiniBand MMA1B00-E100 Compatible QSFP28 100G SR4 EDR Optical Transceiver (MMF, 850nm, 100m, MTP/MPO-12 UPC, DOM)
The NVIDIA InfiniBand MMA1B00-E100 Compatible QSFP28 Optical Transceiver is designed for use in 100Gb/s EDR InfiniBand systems throughput up to 70m over OM3 or 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with QSFP28 MSA, SFF-8636, IEEE Std 802.3bm. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters.
With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as InfiniBand, data centers, high-performance computing networks, enterprise core and distribution layer applications.
| NVIDIA InfiniBand Compatible | MMA1B00-E100 |
Vendor Name | Opticswave |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 850nm |
Max Cable Distance | 100m@OM4/70m@OM3 |
| Connector | MTP/MPO-12 UPC |
Cable Type | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -8.4~2.4dBm |
Receiver Sensitivity |
<-10.3dBm |
| Powerbudget | 1.9dB |
Receiver Overload |
2.4dBm |
| Power Consumption | ≤2.5W |
Extinction Ratio | >2dB |
|
Modulation Format |
NRZ |
Protocols |
QSFP28 MSA, SFF-8636, IEEE Std 802.3bm |
|
Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
Application |
Infiniband 100G EDR |
