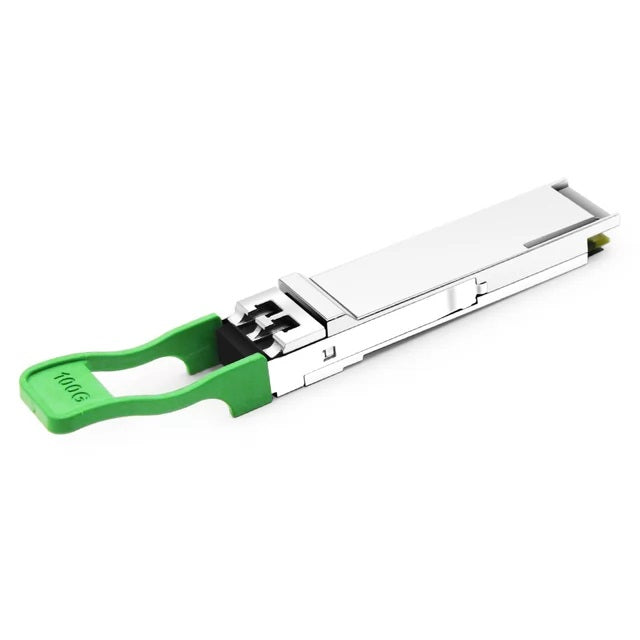

NVIDIA InfiniBand MMA1L30-CM Compatible QSFP28 100G CWDM4 1310nm 2km DOM Duplex LC/UPC EDR SMF Optical Transceiver


Compatible: NVIDIA(Infiniband)
Length: 2km
Price:
Sale price$170.00

Description

NVIDIA InfiniBand MMA1L30-CM Compatible QSFP28 100G CWDM4 EDR Optical Transceiver (SMF, 1310nm, 2km, Duplex LC UPC, DOM)


The NVIDIA InfiniBand MMA1L30-CM Compatible QSFP28 Optical Transceiver is designed for use in 100Gb/s EDR InfiniBand systems throughput up to 2km over single mode fiber (SMF) with Duplex LC connectors. This transceiver is compliant with SFF-8636, SFF-8665 and CWDM4 MSA standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters.
With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as InfiniBand, data centers, high-performance computing networks, enterprise core and distribution layer applications.

NVIDIA InfiniBand Compatible MMA1L30-CM
Vendor Name Opticswave
Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 1271nm, 1291nm, 1311nm and 1331nm
Max Cable Distance 2km
Connector Duplex LC UPC
Cable Type SMF
Transmitter Type 4 x CWDM DML (DFB)
Receiver Type PIN
TX Power -6.5~2.5dBm
RX Power
-11.5dBm~2.5dBm
Powerbudget
5dB Power Consumption
≤3.5W
Core Size G.652/9um
Extinction Ratio >3.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Packaging Technology
COB
Inbuilt FEC
Supported
Protocols
IEEE 802.3ba, IEEE 802.3bm, 100G CWDM4 MSA, QSFP28 MSA, SFF-8665, SFF-8636
Warranty
5 Years
