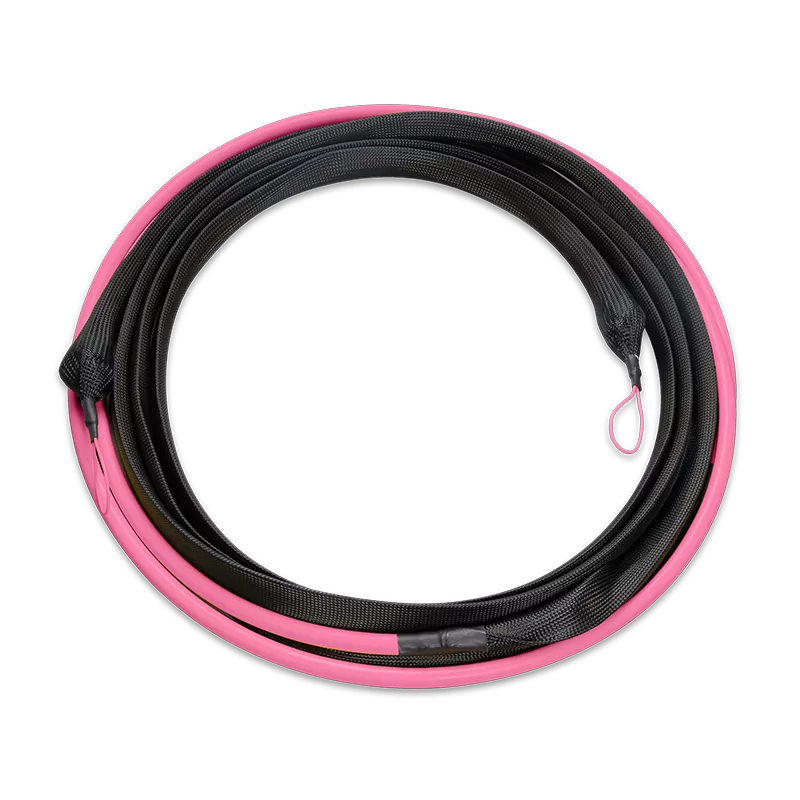

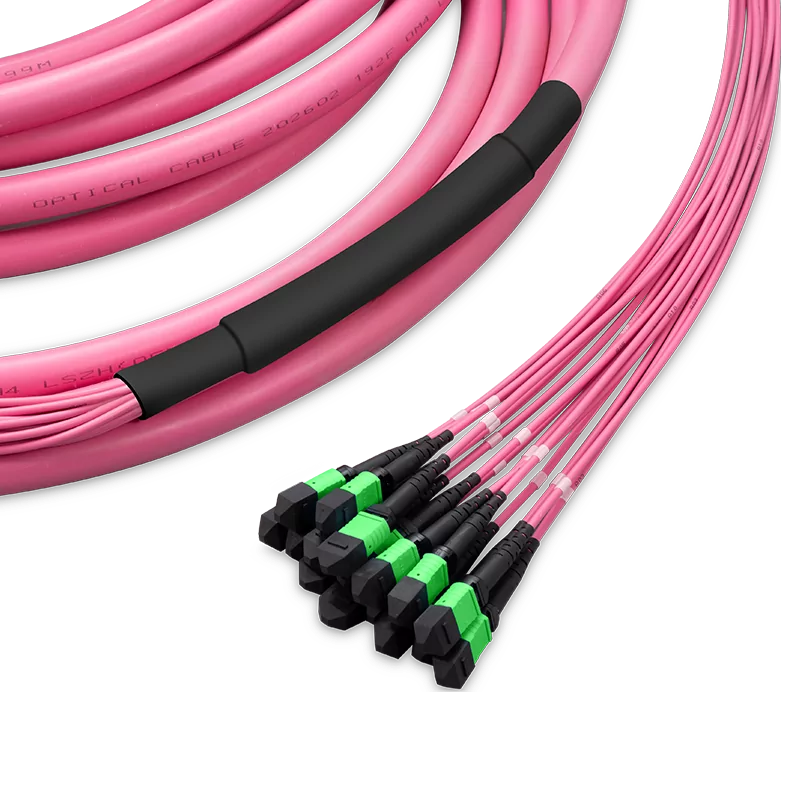

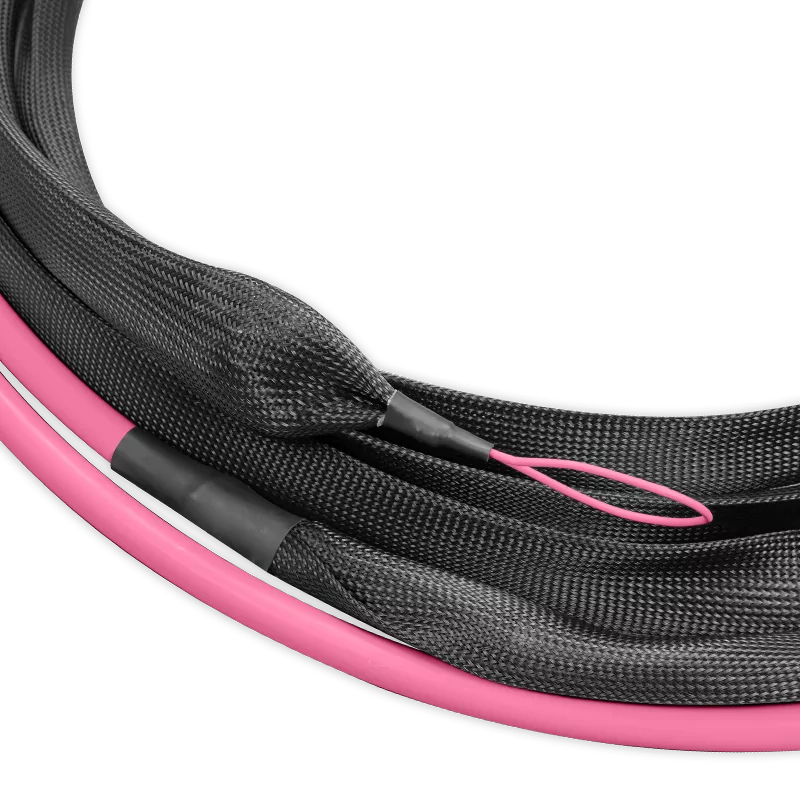

Shuffle Cables provide a structured way to redistribute NIC traffic across multiple switches and network planes, transforming traditionally complex cross-connections into organized, high-density fiber assemblies. In large-scale AI and HPC clusters, where multi-plane architectures multiply physical-layer complexity, Shuffle technology ensures that traffic flows remain balanced, scalable, and logically structured. By predefining fiber mappings and enabling multi-path connectivity, it reduces cabling disorder and operational risk while preserving high performance for latency-sensitive workloads
Description
Specification
| Connector Type | MPO Male to MPO Male | Fiber Grade | Bend Insensitive |
| Fiber Grade | Bend Insensitive | Polarity | Type 2 |
| Polish Type | APC to APC | Fiber Count | 16x8F to 16x8F |
| Fiber Mode | OM4 50/125μm | Cable Jacket/Flame Rating | LSZH/OFNP |
| Wavelength | 850/1300nm | Return Loss | ≥35dB |
| Insertion Loss | ≤0.35dB | Attenuation at 1300 nm | ≤1.0 dB/km |
| Attenuation at 850 nm | ≤2.3 dB/km | Min. Bend Radius | 7.5mm |
| Cable Outside Diameter (OD) |
17.2mm
|
Breakout Outside Diameter (OD) | 3.0mm |
| Breakout Length | 0.8m | Tensile Strength | 400/1335N (Long/Short Term) |
| Connector Durability | ≥ 500 - 1000 times | Operating Temperature | LSZH:-20~70°C OFNP:0~70°C |
Product Highlights
Intelligent Fiber Shuffle for Multi-Plane AI Networks
