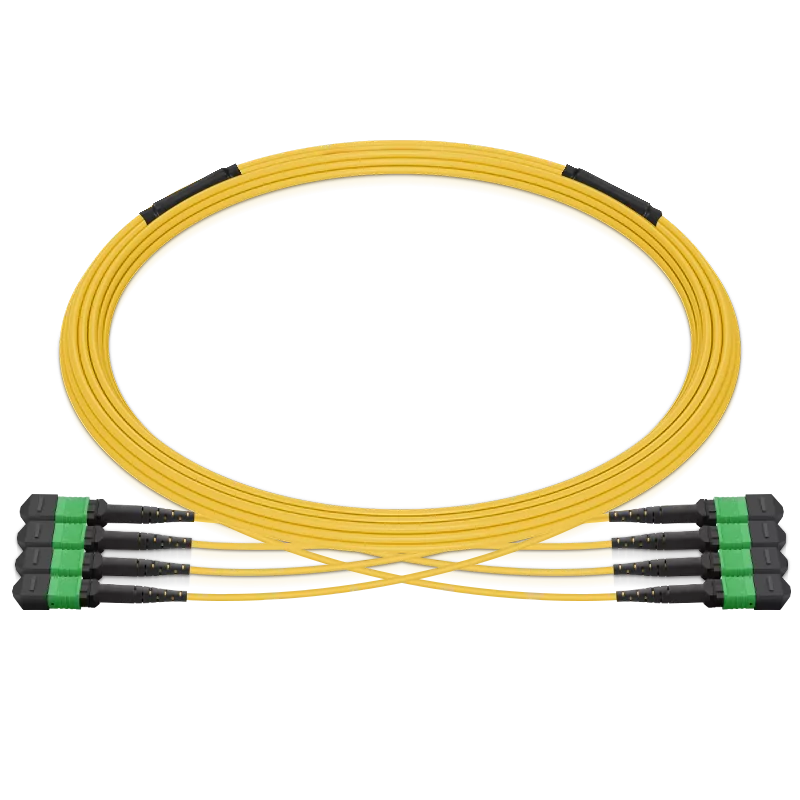

OpticsWave Single-Mode Shuffle Fiber Cables redefine high-speed AIDC connectivity. Engineered for extreme density and seamless deployment, they integrate precision 8° APC connectors to ensure Ultra-low insertion loss. Delivering industry-leading signal integrity, simplified cabling management and robust laser protection, they are the optimal choice for next-gen AI/HPC and data center networks.
Description
Specification
| Connector Type | MPO Male to MPO Male | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) | Polarity | Type 4 |
| Polish Type | APC to APC | Fiber Count | 4x8F to 4x8F |
| Fiber Mode | OS2 50/125μm | Cable Jacket/Flame Rating | LSZH/OFNP |
| Wavelength | 1310/1550nm | Return Loss | ≥60dB |
| Insertion Loss | ≤0.35dB | Attenuation at 1550 nm | ≤0.21 dB/km |
| Attenuation at 1310 nm | ≤0.35 dB/km | Min. Bend Radius | 10mm |
| Cable Outside Diameter (OD) | 3.5mm | Breakout Outside Diameter (OD) | 3.0mm |
| Breakout Length | 0.8m | Tensile Strength | 200/660N (Long/Short Term) |
| Connector Durability | ≥ 500 - 1000 times | Operating Temperature | LSZH:-20~70°C OFNP:0~70°C |
Product Highlights
Single-Mode Shuffle Fiber Cables
Intelligent Fiber Shuffle for Multi-Plane AI Networks
Shuffle Cables provide a structured way to redistribute NIC traffic across multiple switches and network planes, transforming traditionally complex cross-connections into organized, high-density fiber assemblies. In large-scale AI and HPC clusters, where multi-plane architectures multiply physical-layer complexity, Shuffle technology ensures that traffic flows remain balanced, scalable, and logically structured. By predefining fiber mappings and enabling multi-path connectivity, it reduces cabling disorder and operational risk while preserving high performance for latency-sensitive workloads
High-Density Trunk Cabling for Scalable Data Centers
OpticsWave high-density MPO trunk cables are available in 16, 32, 96, 128 and 256 fibers. They comply with TIA/EIA and IEC standards, delivering low insertion loss and high return loss to support 40G, 100G, 400G, and higher-speed transmission.Designed for backbone interconnections between MDA, IDA, and EDA in data centers, they simplify high-density cabling management and provide a reliable foundation for scalable infrastructure deployment.
