Description

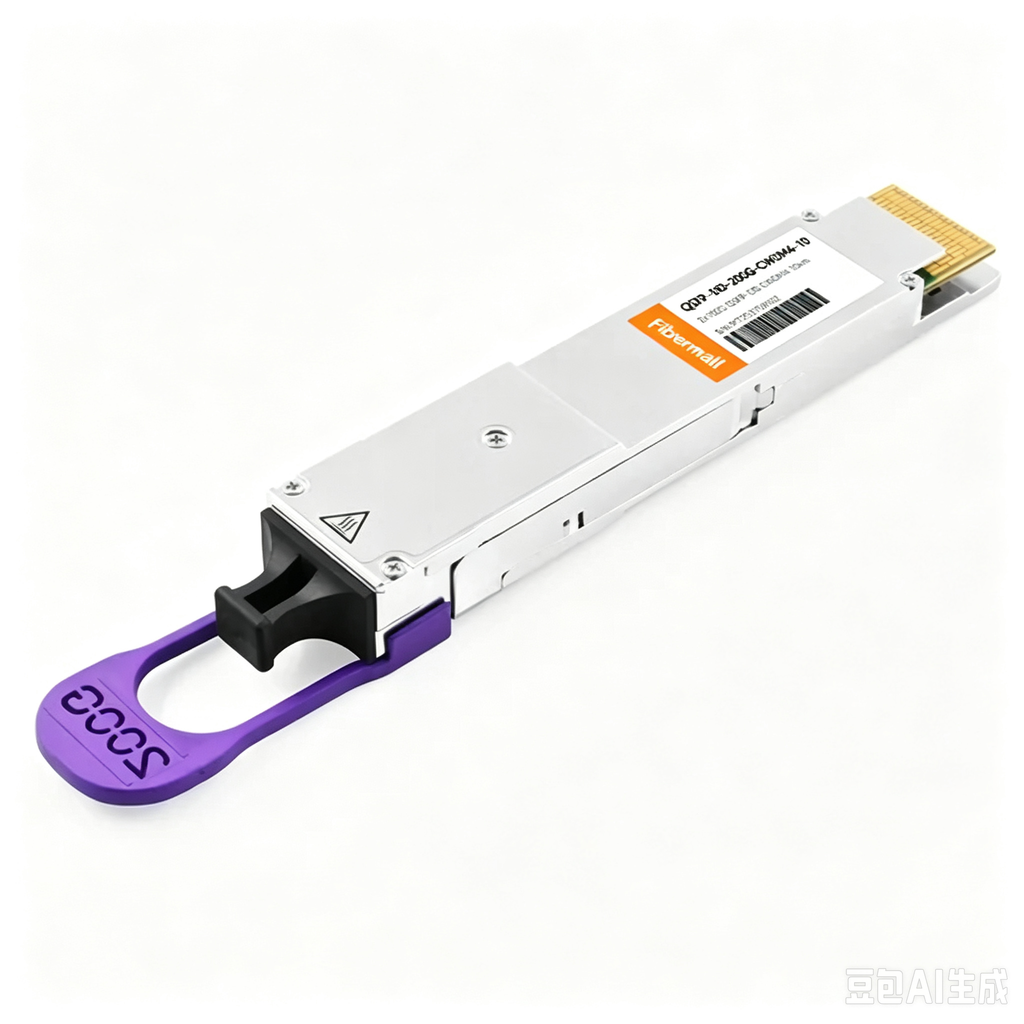

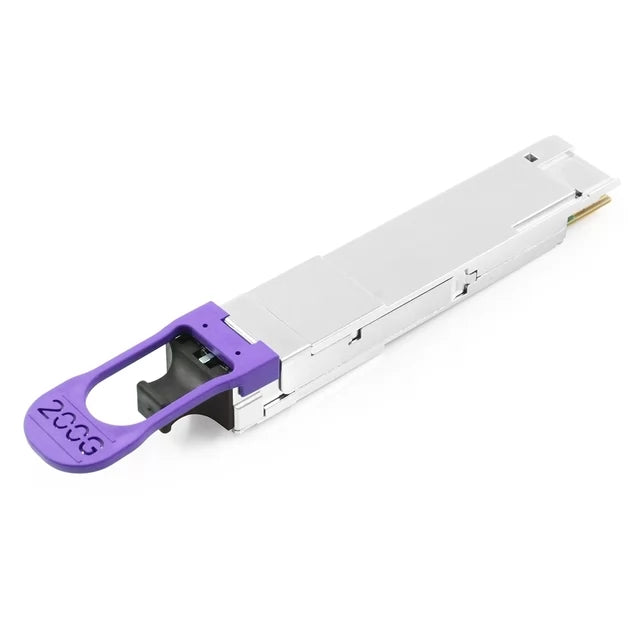

2X100G QSFP-DD CWDM4-10 Optical Transceiver Module (1271nm 1291nm 1311nm 1331nm CS SMF 10km DDM)
2X100G QSFP-DD CWDM4 optical transceiver modules are suitable for data centers and HPC (High-Performance Computing) links up to 10km over single-mode fiber with FEC. It also features outstanding BER and high sensitivity because of its reliable design and excellent coupling efficiency.
QSFP56-SR4-200G Specifications
| NVIDIA InfiniBand Compatible |
QSFP-DD-200G-CWDM4-10
|
Vendor Name | opticswaves |
| Form Factor | QSFP-DD | Max Data Rate | 212.5Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm |
Max Cable Distance
|
10km |
| Connector | Dual CS | Media | MMF |
| Transmitter Type | 8 x CWDM – Uncooled DFB Laser | Receiver Type | PIN |
| TX Power | Each Lane | Receiver Sensitivity | < -11.5dBm |
| Power Consumption | <8W | Extinction Ratio | >3dB |
| Modulation Format | PAM4 | Protocols | QSFP56 MSA, SFF-8636, IEEE 802.3bs |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Application | Infiniband HDR |
