Description

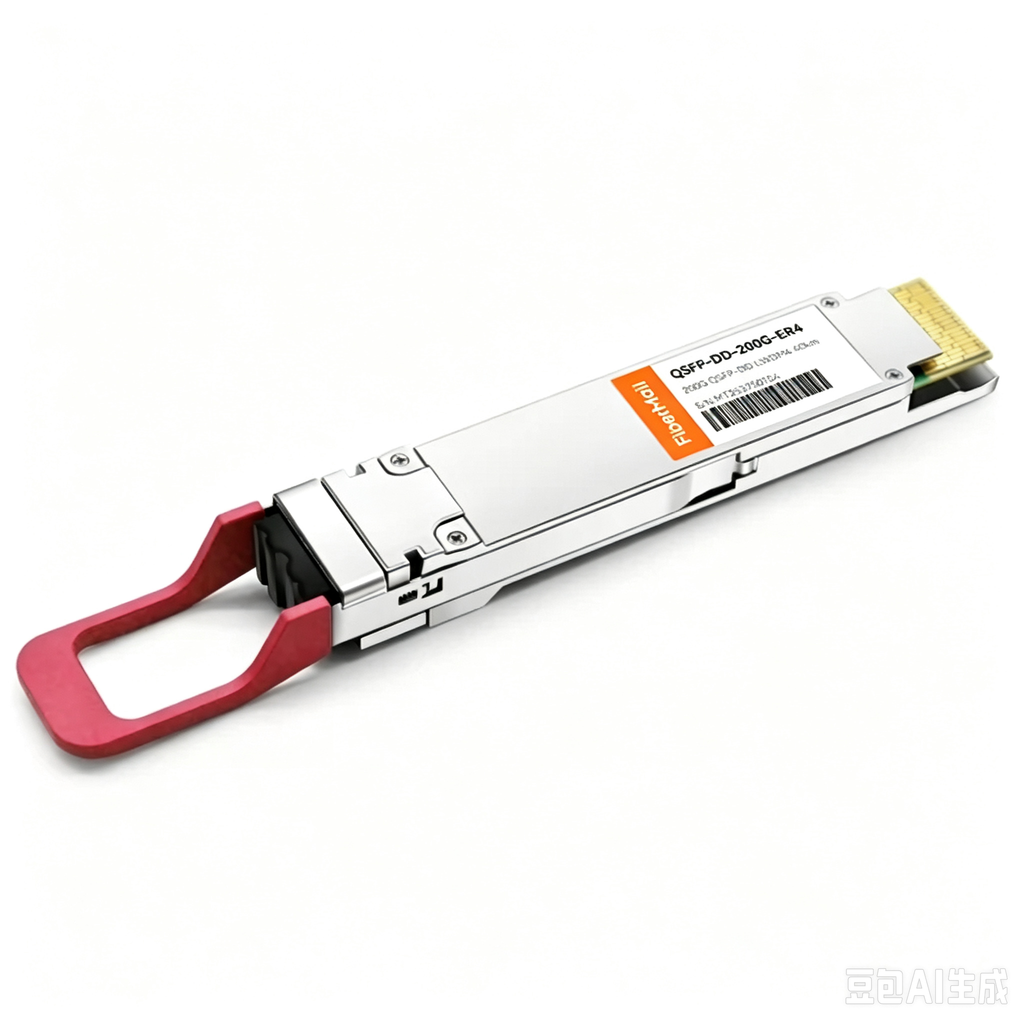

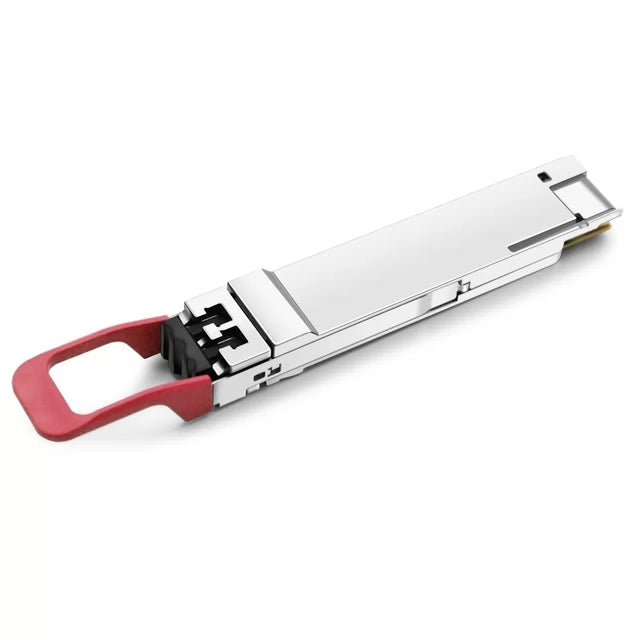

200G QSFP-DD ER4 PAM4 4 LAN WDM Lanes MUX/DEMUX Design 40km Optical Transceiver Module (1295.56nm 1300.05nm 1304.58nm 1309.14nm LC SMF 40km with FEC DDM)
200G QSFP-DD ER4 is a pluggable optical transceiver module designed for data center 200G ER4 Ethernet links up to 40km over SMF. it works in high-speed IDC connection solutions, 5G network back-haul solutions, and so on.
QSFP56-SR4-200G Specifications
| NVIDIA InfiniBand Compatible |
QSFP-DD-200G-ER4
|
Vendor Name | opticswaves |
| Form Factor | QSFP-DD | Max Data Rate | 212.5Gbps |
| Wavelength | 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm |
Max Cable Distance
|
40km |
| Connector | Duplex CS | Media | MMF |
| Transmitter Type | EML LWDM4 | Receiver Type | PIN |
| TX Power | -0.1~+5.6dBm | Receiver Sensitivity | < -14.1dBm |
| Power Consumption | <12W | Extinction Ratio | >3dB |
| Modulation Format | PAM4 | Protocols | QSFP56 MSA, SFF-8636, IEEE 802.3bs |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Application | Infiniband HDR |
